Operating Weight
Rated Bucket Capacity
Operating Weight
Rated Bucket Capacity
37480kg
0.6m³

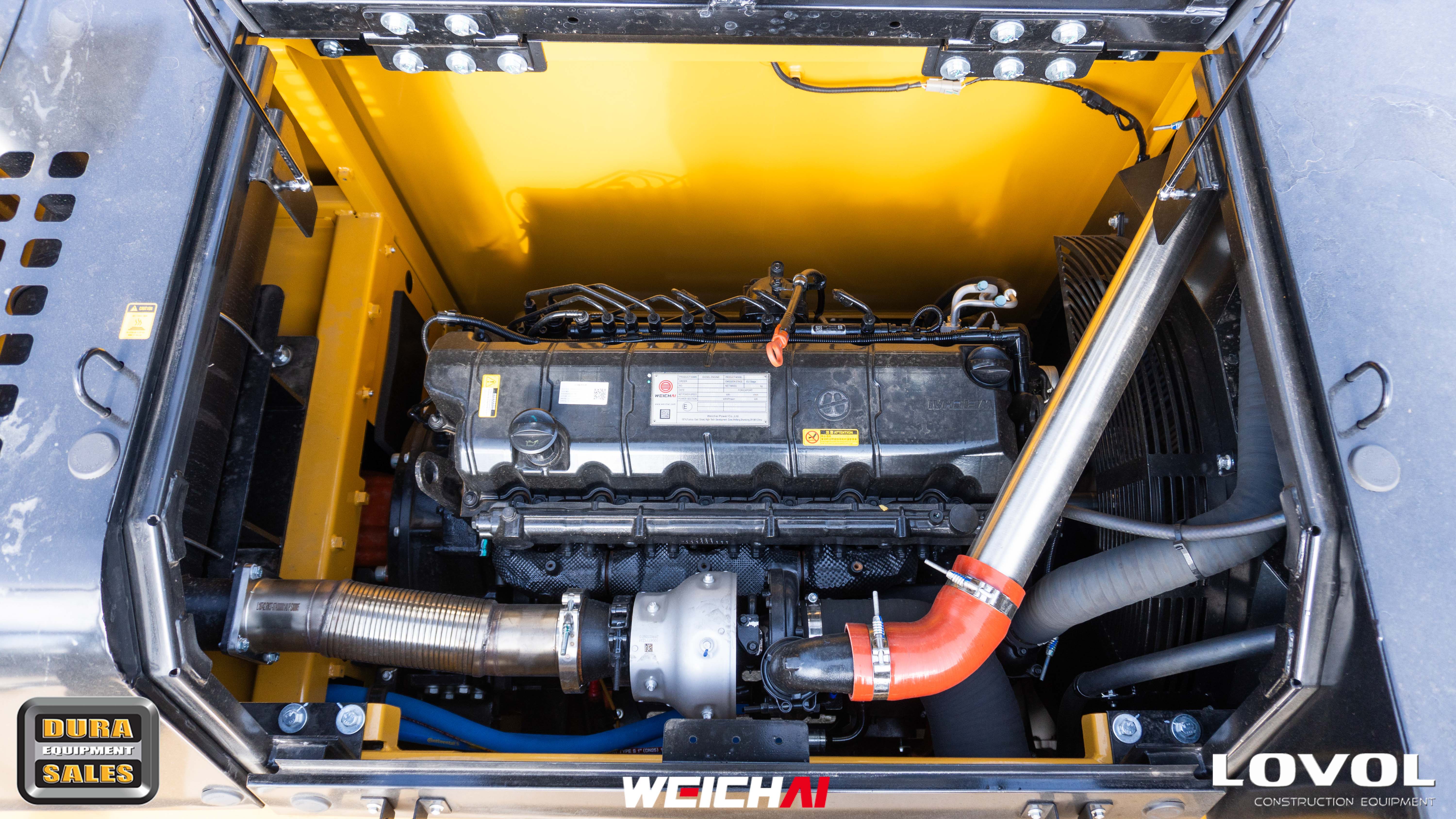

Model
Type
Power
Bore & Stroke
Weichai WP8
Weichai / 6 Cylinder
228kw / 2000 RPM
111mm x 142mm
Main Pump
Main Valve
Swing Motor
Bore
Stroke
Stick Cylinder
Bore
Stroke
Bucket Cylinder
Bore
Stroke
Travel Circuit
Implement Circuit
Swing Circuit
Pilot Circuit
Hydraulic Piping
Pump Flow
Pump Pressure
Weichai
Weichai
Weichai
Wuxi Hengli
100mm
140mm
1666mm
Hengli
100mm
140mm
1666mm
Hengli
95mm
65mm
885mm
34.3Mpa
27 Mpa
3.9 Mpa
Standard
547 L/min

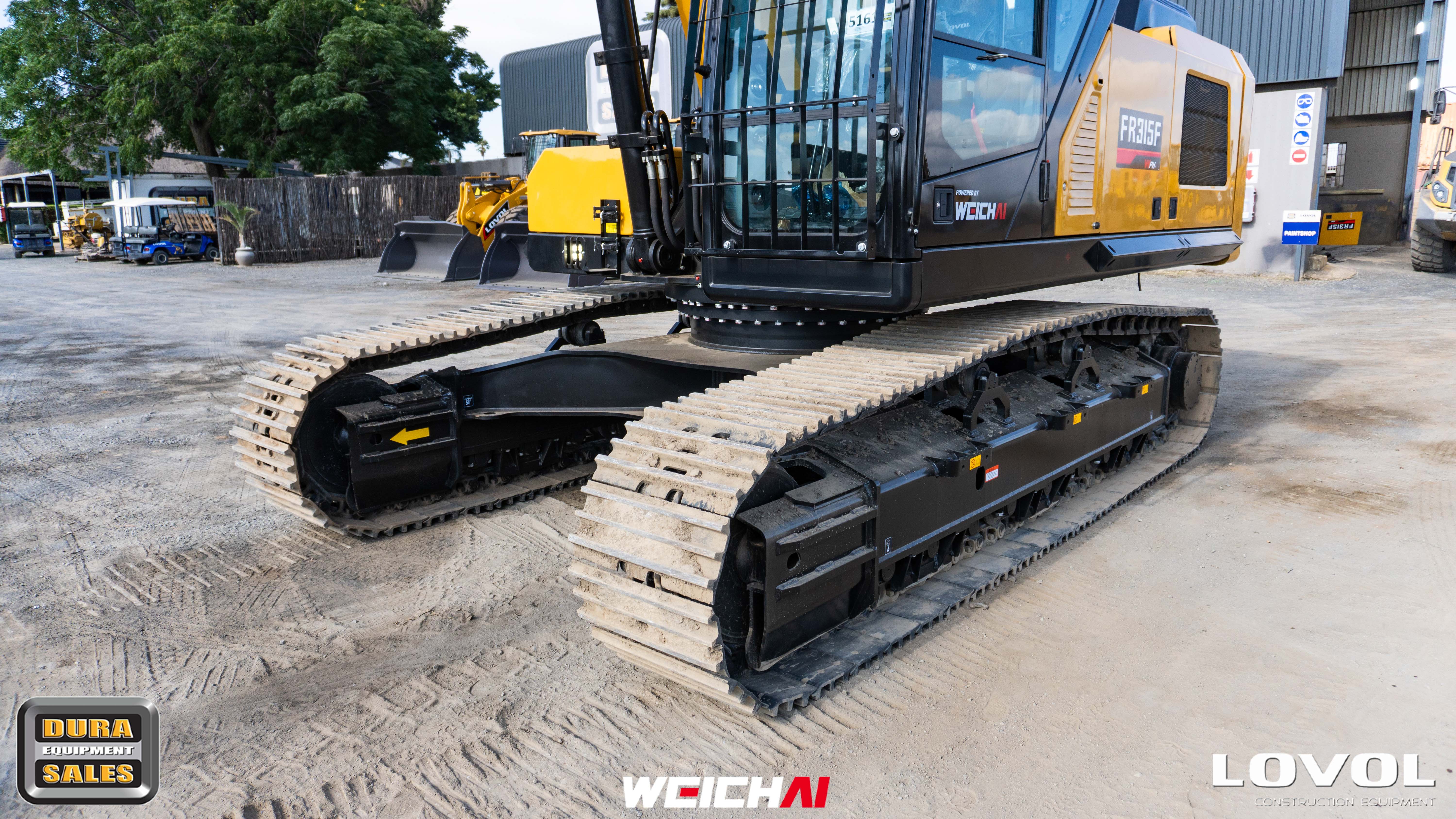

42 Mpa
Frame
Rail Distance
Track Width of Shoe
Undercarriage Width
Track Length
Number of Shoes
Number of Carrier Rollers
Number of Track Rollers
X-Type
2590mm
600mm
3190mm
5070mm
49
4
18
Travel Motor
Maximum Travel speed
Steering Control
Drive Method
Mex Pressure
Eddie
5.1 km/h
2 Levers/Pedals
Hydrostatic
42 Mpa
Drive Method
Swing Speed
Swing Circle Lubrication
Swing Lock
Swing Reduction
Hydrostatic
9.8 Rpm
Grease
Oil-disc Brake
Planetary Gear
Fuel Tank
Cooling System
Engine Oil
Swing Motor
Final Drive
Hydraulic Tank
505L
8L
26L
2L
11L
320L
