Operating Weight
Rated Bucket Capacity
Operating Weight
Rated Bucket Capacity
24500 kg
0.4m³
Model
Type
Power
Bore & Stroke
Weichai WP6
Tier 3 / 6 cylinder
129kw / 2000 RPM
105mm x 130mm
Main Pump Type
Main Valve
Swing Motor

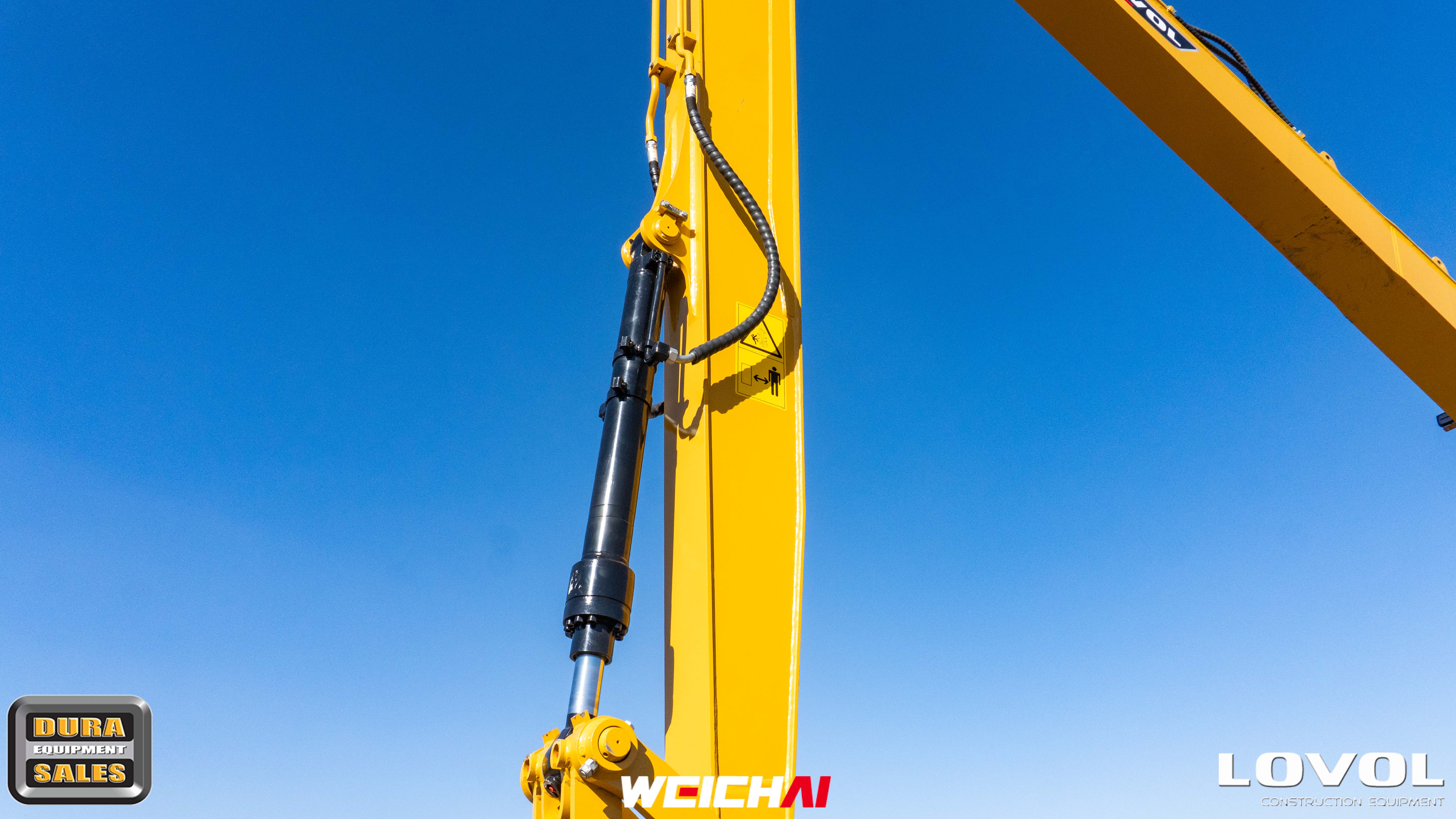

Boom Cylinder
Bore
Stroke
Stick Cylinder
Bore
Stroke
Bucket Cylinder
Bore
Stroke
Travel Circuit
Implement Circuit
Swing Circuit
Pilot Circuit
Hydraulic Piping
Pump Flow
Pump Pressure
Linde
Linde
Linde
Wuxi Hengli
120mm
1335mm
Wuxi Hengli
135mm
1490mm
Wuxi Hengli
115mm
1120mm
34.3 Mpa
27.5 Mpa
3.5 Mpa
Standard
550 Mpa
34 Mpa
Frame
Rail distance
Track Width of Shoe
Undercarriage Width
Track Length
Number of Shoes
Number of Carrier Rollers
Number of Track Rollers
X-Frame / Fixed Track
2380mm
600mm
2980mm
4436mm
49
2
9
Travel Motor
Maximum Travel Speed
Steering Control
Drive Method
Max Pressure
Eddie
5.3km/h
2 Levers / Pedals
Hydrostatic
34.3 Mpa
Drive Method
Swing Speed
Swing Circle Lubrication
Swing Lock
Swing Reduction
Hydrostatic
10.5 r/min
Grease
Oil-Disc Brake
Planetary Gear
Fuel tank
Cooling System
Engine Oil
Swing Motor
Final Drive
Hydraulic Tank
385L
20L
22L
4L
5L
206L
